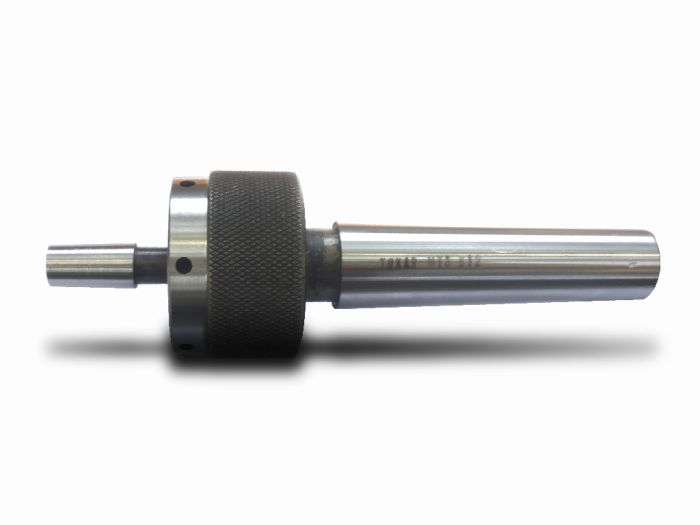

Floating Reamer Holder MT3 with cone B16
floating Reamer Holder with rigid fixation MT3 for Drill Chuck with cone B16.
Allows the reamer to remain parallel with the bore, while compensating of misalignment or wear between tailstock and chuck.
Floating reamer holders are used on production machines like single-spindle lathes, multi-spindle lathes, drills machines. They is mainly used for reamer operation and can also be used for rigid drilling/centering.
total length: 160mm
shank type: MT3
floating head: cone B16
head deflection angle: ±2°
axial head displacement: ±2mm
|Country of Manufacture||Ukraine|
